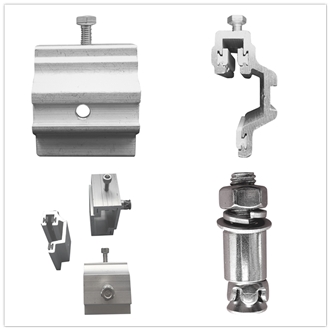

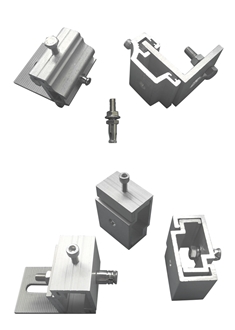

Cladding Fixing System Facade Bracket For Building Material

Cladding Fixing System Facade Bracket for Building Material

Application: Stone anchors, wall mounting bracket can be applied to different panels, such as granite, marble, sandstone, crystall glass, travertine,limestone, ceramic, etc. Is used for facade cladding.



Material: Undercut anchor, bolt&nuts are made of stainless steel 304, stainless steel 316;

              Aluminium brackets and angles are made of aluminium 6063-T5, 6061-T6.



Benefits:

    1. Stone cladding system with undercut anchor is a safe way for installing stone / ceramic panels on interior and exterior wall. Strength of each        panel is independant       and not affect others.



    2. The shape of expansion part is designed based on the hole shape of stone panel, which fits firmly to the panel after expansion and achieves            reliable anchorage effect.



    3. The groove in the expansion part weakens the strength from deformation. And anchor bolt expands by gently tapping the expansion sleeve while  installion, avoiding stone panel from break by external force.



    4.  Due to that the expansion part fits firmly to the hole, which increases the contact area and decreases the stress to the stone panel, it

strengthens the load capacity from anchor bolt and stone panel.
