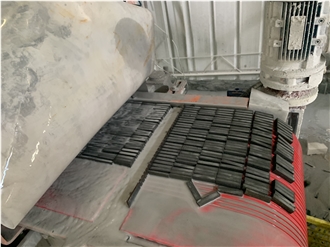

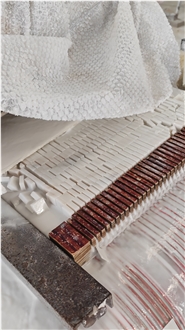

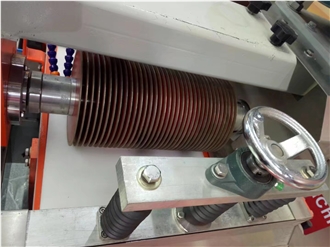

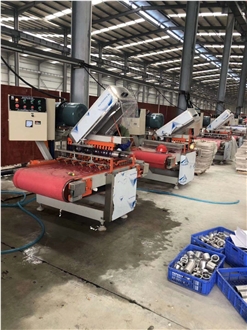

Mosaic Multi Cutting Machine
- Type
- Mosaic Cutting Machine
- Usage
- Marble, Granite, Artificial Stone
After-Sale
- Lead Time
- 15 DAYS
- Warranty
- 3 months
- Install and Guarantee
- Customer pay for installation
- Maintenance
- Online software upgrade
Supplier
PANGU MACHINE
Established: Jan 18,2010
Main Product: Stone mosaic polishing machine, mosaic cutting machine, stone calibration, mosaic machine, Chamfering machine, ceramic tile machine
Contact SupplierYou may also like
Machinery Function Features
Automatic cutting machine is suitable for cutting high-grade mosaic of various materials, suchas ceramic,marble ,granite,glass and other materials,with the minimum size of 10*10mm，and various shapes ,such as hexagon,diamond shape,octagon, conventional square,rectangle,etc.this machine has stable performance,mosaic size standard,high efficiency,good quality,easy operation and maintenance
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | PGQ-300/400/600/800 |
|---|---|---|
| Spindle power | kw | 15/18.5/22/30 |
| Diameter of cutting discs | mm | 180-300 |
| Main motor power | kw | 15/18.5/22/30 |
| Lifting motor power | kw | 0.55 |
| Max. cutting width | mm | 300/400/600/800 |
| Conveyor belt width | mm | 320/420/620/820 |
| Machine overall length | mm | 2000 |
| Min. cutting size | mm | 6-800 |
| Mosaic Tiles efficiency | m2/h | 10 |
| Approx. Weight | Kg | 1000 |
| Conveyor belt feed speed | m/min | 0.1-4 |
| Machine overall height | mm | 2000 |
| Machine overall width | mm | 1800 |
| Max. working thickness | mm | 50 |
| Number of Spindle head | nr | 1 |

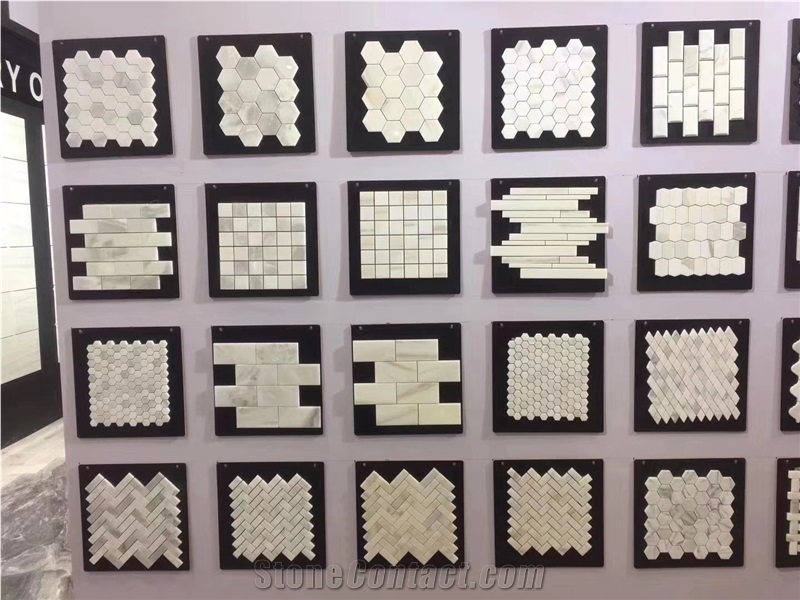

Processed Stone Photos
Processed Stone Photos
Send your message to this supplier

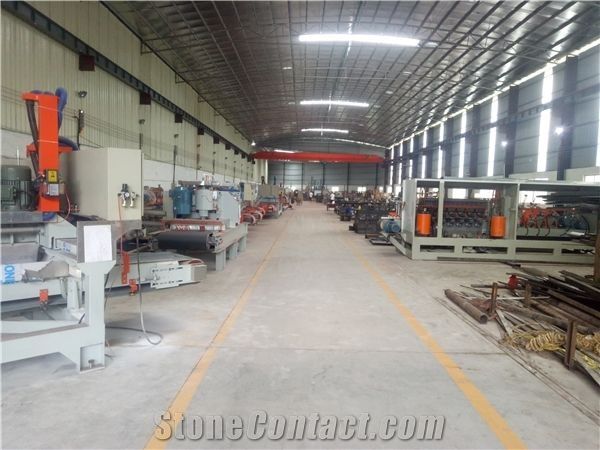

Company Profile
- Company Name:
- Foshan Pangu Machinery Co.,Ltd.
- Business Type:
- Stone Machinery
- Country/Region:
China- Established:
- Jan 18,2010
- Verification Type:
- Free
Company Overview
Company Description
Foshan Pangu Machinery Co.,Ltd is a professional stone processing machinery company,the company is specialized in the production ,design and manufacture of stone processing ,ceramic processing machinery and equipment manufacturers,PANGU machinery main products lines machine PG straight edge,PG single and double squaring and chamfering machine,PG series arc polishing machine ,PG multifunctional automatic cutting machine,stone mosaic plane polishing machine,stone polishing machine specifications board the plan,broken stone and more thin knife machine,automatic cutting stone mosaic,pelletizer ,monolithic thin -breaking machines,machines and other fixed thick ceramic and stone processing equipment machinery.
the philosophy of "cooperation.innovation.win-win"business philosophy of "quality first.reputation first.service",the pursuit of the perfect combination of technology and applications for business purposes,continue to develop.manufacture and marketing of high-tech,high-quality new products to meet market demand ,for customers to solve the problem of staff shortage,low efficiency,by pangu foshan ceramic machinery equipment company to obtain good returns.
