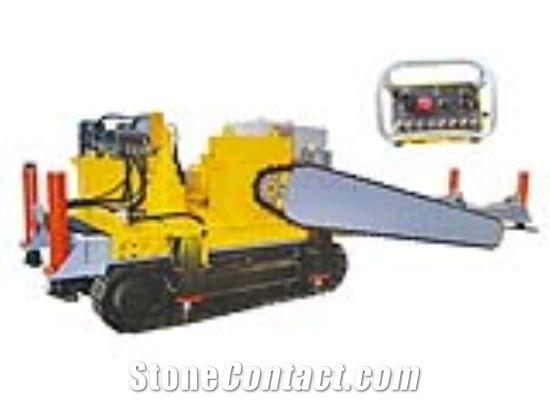

Crawler type chain saw
- Type
- Squaring Chain Saw Machines
- Usage
- Granite, Marble
- Supplier
Shang Hai Zhongzhu Industrial CO.,LTD- Location
China
Zhongzhu
Contact SupplierYou may also like
Machinery Function Features
Crawler-type chain saw is the enhanced one of orbital-type chain saw,the biggest characteristic of the machine is equipped with a pedrail walking itself,moving conveniently and flexibly. The machine host and pedrail move alternately in working , which don't need to cooperate with other hoisting machinery moving track, suitable for outdoor use in mines. Each machine can be designed to have two kinds of working model--- vertical and horizontal cutting.
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | GD-CS2500 | GD-CS3500 |
|---|---|---|---|
| Installed power | kW | 46 | 56 |
| Total machine weight | Kg | 13000 | 14500 |
| Cut width | mm | 40 | 40 |
| Maximum cutting depth | m | 2500 | 3500 |
| Movement speed on tracks | Km/h | 0.6 | 0.6 |
| Dimension LxWxH | mm | 6500×2250×2100 | 6500×2250×2100 |
| Cutting speed | m/h | 0~4 | 0~4 |
