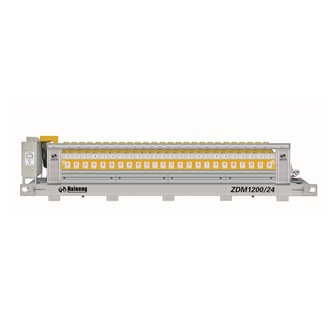

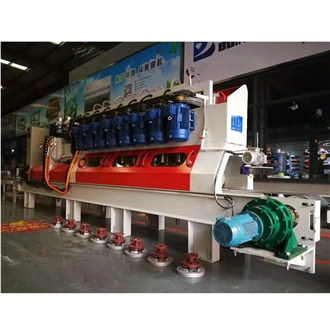

Automatic Stone Edge Grinding And Profiling Machine
- Type
- Edge Profiling, Polishing Machine
- Usage
- Granite, Artificial Stone, Marble, Basalt, Limestone, Quartzite, Slate, Sandstone, Travertine
New Haineng
Contact SupplierMachinery Function Features
This machine is mainly used for processing thick and polished strips of narrow strips, narrow strips, roadside stone, etc. The machine adopts micro-computer automatic control, the operation is simple and convenient, the whole processing flow adopts integrated processing, the front section is thick and the head is responsible for the thickness, and the rear section is multi-grinding and grinding, which is the ideal equipment for processing strip-like stone.
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | ZDM8+2 | ZDM12+2 |
|---|---|---|---|
| Grinding number | pc | 8+2 | 12+2 |
| Beam swing speed | m/min | 3-35 | 3-35 |
| Thickness | mm | 50-150 | 50-150 |
| Total power | kw | 95.16 | 95.16 |
| Overall dimensions | mm | 11500×1000×1750 | 13000×1000×1750 |
| Into the board rate | m/min | 1-4 | 1-4 |
| Water Consumption | m³/h | 12 | 18 |
| Total Weight | kg | 8000 | 13000 |
| Disc diameter | mm | 300 | 300 |
| Supply pressure | mpa | 0.85 | 0.85 |
| Cooling water pressure | mpa | 0.1-0.15 | 0.1-0.15 |
| Grinding plate width | mm | 250 | 250 |
Processed Stone Photos

Components
Consumables
Install Video
Operation Video
After-Sale
- Lead Time
- 60 days
- Warranty
- 12 months
- Install and Guarantee
- Remote guidance installation, Customer pay for installation
- Maintenance
- Regular guidance & maintenance, Remote troubleshooting
