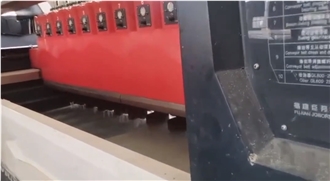

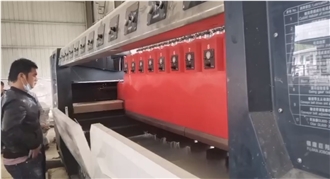

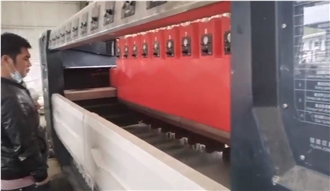

Automatic Bush Hammering Litchi Surface Stone Processing Machine

Type
Bush Hammering Machine
Usage
Granite, Artificial Stone, Marble, Basalt, Limestone, Quartzite, Slate, Sandstone, Onyx, Travertine

After-Sale

Lead Time
25~30 days after prepayment received
Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance
Online software upgrade, Regular guidance & maintenance, Remote troubleshooting

Supplier

JOBORN MACHINERY

Established: Jul 28,2015

Main Product: Stone Block Cutting Machine, Bridge Saw Machine, Stone Polishing Machine, CNC Bridge Cutting Machine, Bridge Cutting Machine, Stone Profiling Machine

Contact Supplier

You may also like

Machinery Function Features

SAL1200-08 Automatic Litchi-Surface Grinding Machine.This series machine with the international advanced level of stone litchi-surface grinding equipment, JOBORN had R&D and manufacturing it on the basis of the advantages of similar products at home and abroad. The industry design of machine to lead the industry trend, Grinding efficiency and grinding quality in the leading level in similar products at home and abroad. Working stable and reliable, it’s the first choice for automatic stone litchi-surface grinding equipment.

BASIC TECHNICAL PARAMETERS

Technical Data
ParameterUnitSAL1200-08
Total powerkw~75
Max. processing widthmm1200
Approx. WeightKg9000
Main motor powerkw7.5
Machine overall heightmm2200
No. of hammering headnr4
Water consumptionm3/h8
Machine overall widthmm3300
Sound pressure leveldB60
Max. processing thicknessmm80
Machine overall lengthmm5600
Air consumptionm3/h10
Belt advanced speedm/min0~3.5
Min. processing thicknessmm10

Software

Adopt independent patented technology of spindle structure, plate shape detection device, automatic  lubrication  system;

PLC computer operating system, LCD touch screen(7 inches) using Chinese and  English operation  interface, the use of imported  and  domestic  first-line brand s of  electrical components, Taiwan Artak pneumatic components, the main motor  is 7.5KG-4P;

Working Example

SAL1200-08 Automatic Litchi-Surface Grinding Machine.This series machine with the international advanced level of stone litchi-surface grinding equipment, JOBORN had R&D and manufacturing it on the basis of the advantages of similar products at home and abroad.

The industry design of machine to lead the industry trend, Grinding efficiency and grinding quality in the leading level in similar products at home and abroad. Working stable and reliable, it’s the first choice for automatic stone litchi-surface grinding equipment.

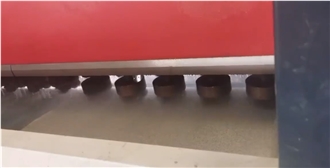

The grinding  head  is pneumatic lifting, the maximum processing  height of the grinding  head  is 80mm, the grinding head is a special litchi surface grinding  head, and  the number of grinding  heads  is 8; Linear rolling  guide rail for moving  back  and forth;

Processed Stone Photos

Processed Stone Photos

Processed Stone Photos

Components

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Main Component

Consumables

Vulnerable Parts or Consumables

Vulnerable Parts or Consumables
