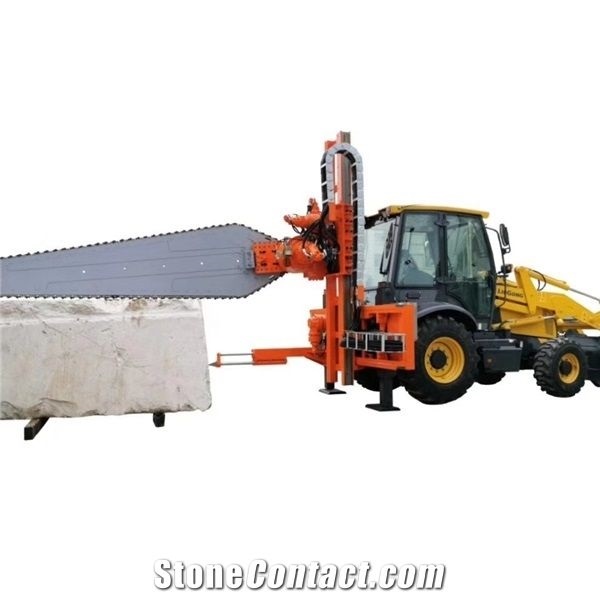

Backhoe Chain Saw Block Squaring Machine
- Type
- Backhoe Squaring Chain Saw
- Usage
- Marble, Limestone, Quartzite, Sandstone, Travertine
After-Sale
- Warranty
- 12 months
- Install and Guarantee
- Remote guidance installation, Customer pay for installation
- Maintenance
- Field troubleshooting, Remote troubleshooting
- Supplier
Shanghai Zhongzhu Industrial Co., Ltd- Location
China- Membership
-
ZHONGZHU
Established: Oct 08,2012
Main Product: chain saw, chainsaw, marble chain saw, marble chainsaw, chain saw machine, chainsaw machine
Contact SupplierYou may also like
Machinery Function Features
Dry cuts, no water supply required.
The products are referred to Italy mainstream manufacturers’ design, reasonable layout and structure, convenient operation.
The gear boxes are planetary gear boxes, large bearing capacity, supplied by Italian producer.
The rails and trolleys are made of alloy steel, big bearing capacity and deformation resistant.
The hydraulic components are also from Italy.
The main oil pumps and hydraulic motors are made in Germany.
The electrical components are mainly from Schneider Electric.
The chain arms are made of high strength steel from Sweden.
The cutting chains are made of wear-resistant steel from Sweden
The bearings and oil seals are the Japanese brands.
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | LZ-CS3400 |
|---|---|---|
| Diesel comsumption | L/h | 7 -10 |
| Grease tank capacity | Kg | 30 |
| Horizontal stroke | m | 2 |
| Vertical stroke | m | 3 |
| Arm rotation | ° | 90° |
| Cutting unit weight | Kg | 3800 |
| Tractor weight | Kg | 7200 |
| Installed power | kw | 75 |
| Effective cutting length | m | 2 - 3.4 |
| Kerf width | mm | 40 |
| Grease consumption | kg/h | 0.3 - 1 |
| Maximum slope | 21° |
Send your message to this supplier
Company Profile
- Company Name:
- Shanghai Zhongzhu Industrial Co., Ltd
- Business Type:
- Stone Machinery
- Country/Region:
- China
- Established:
- Oct 08,2012
- Verification Type:
- Free
Company Overview
Company Description

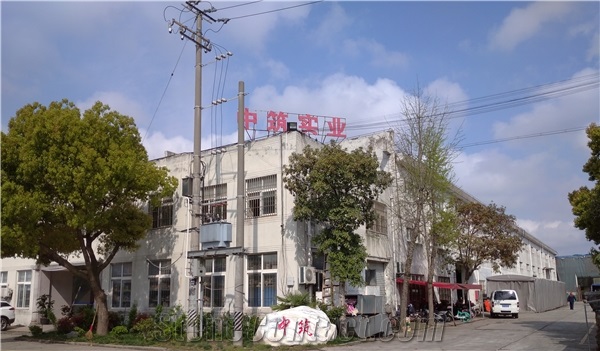

Located in Shanghai Jiading District, Shanghai Zhongzhu Industrial Co., Ltd. is specialized in R&D, manufacturing, sales and service of stone mining equipment. The company persists in technology innovation and owns over 20 domestic patents.
The leading products, chain saw machines are researched, developed and manufactured in China. The products are CE certified and have been sold to over 20 countries.
To meet the customers’ demands and to improve customers' satisfaction are the consistent pursuits. The company is committed to building ZHONGZHU into a world-class brand.
