EVO 6608/2450 for pressing ceramic tiles
- Type
- Pressing Machine
- Usage
- Artificial Stone
After-Sale
- Warranty
- 12 months
- Install and Guarantee
- Customer pay for installation, Remote guidance installation, Third-party team installation
- Maintenance
- Online software upgrade, Remote troubleshooting
- Supplier
SITI B&T GROUP S.p.A.- Location
Italy
SITI B&T
Established: Feb 01,1961
Main Product: Ceramic Tile-Slab Machinery, Artificial Stone Plant Machinery
Contact SupplierYou may also like
Machinery Function Features

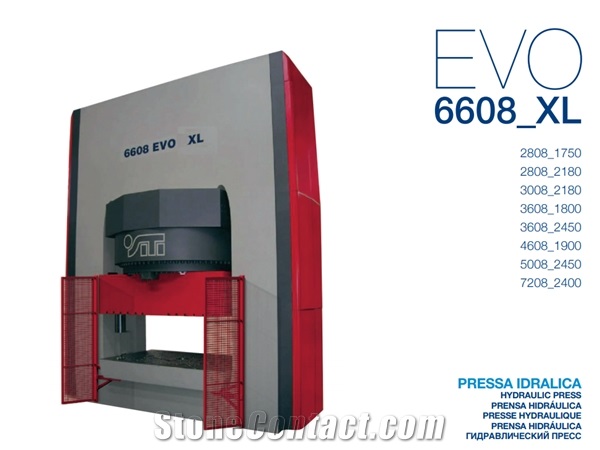

Hydraulic press EVO 6608/2450 has been designed for pressing ceramic tiles with max pressing force of 6608 tons and span of 2450.
Maximum pressing force 6600 / 64.7 Tons / MN
Maximum service circuit pressure 160/16 Bar / Mpa
Maximum circuit pressure 350/35 Bar / Mpa
span between the columns 2450 mm
Max distance between bed and crossbar 750 mm
Maximum travel of mobile crosspiece 250 mm
Maximum extraction force (Syncro) 22.5 / 0.22 Tons / MN
Maximum thickness of the soft 75 mm
Number of lifting push points 4
Number of presses per cycle 1-2-3-4
Number of cycles / min up to 16 cycles / min
Hydraulic circuit oil quantity 2600 Kg
Main motor power 160 kW
Press auxiliary services power 15 kW
Power for heating molds 30 + 30 + 15 kVA
Net weight (excluding molds) 159 Tons
Maximum loading width 2230 mm
BASIC TECHNICAL PARAMETERS
| Parameter | Unit | EVO 6608/2450 |
|---|---|---|
| Approx. Weight | T | (excluding molds) 159 |
| Total power | kw | 160 |
| Max. slab width | mm | 2230 |
| Pressure | T | 64,7 |
| Max. service circuit pressure | MPa | 16 |
| Max. circuit pressure | MPa | 35 |
| Span between the columns | mm | 2450 |
| Max distance between bed and crossbar | mm | 750 |
| Max. travel of mobile crosspiece | mm | 250 |
| Max extraction force (Syncro) | T | 0.22 |
| Max. thickness of the soft | mm | 75 |
| Number of lifting push points | nr | 4 |
| Number of presses per cycle | nr | 1-2-3-4 |
| Hydraulic circuit oil quantity | kg | 2600 |
| Press auxiliary services power | kw | 15 |
| Power for heating molds | kVA | 30 + 30 + 15 |
