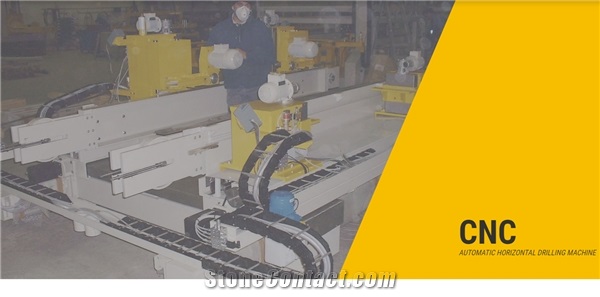

CNC Automatic Horizontal Drilling Machine

EQUIPPED WITH 4 horizontal drilling spindles 2 milling machines for pockets 2 horizontal milling machines for slot, stopped slot, prolonged slot, kerf, rebated kerf (with shaped wheel), QM (bevel cut) The machine features: 2 slab conveyors with manually adjusted width for processing slabs of different sizes. Alongside each conveyor there is a guide to keep the slab aligned 4 drilling units, 2 on each side of the machine, which can travel along the whole length of the machine 2 cutting units for the pocket placed above two drilling units on each side of the machine 2 cutting units for slot/kerf placed above two drilling units on each side of the machine 2 mechanical stops to hold the slab in position during processing. Work cycle Processing occurs when the slab is not moving. The two conveyors move the slab to the mechanical stops. Before reaching them, speed is reduced to allow for smooth, precise positioning. Then, drilling and pocket cutting are performed, or slots and kerfs are made. Once processing is over, the slab is moved backwards, the two mechanical stops retract, and the conveyors bring the slab to the discharge point. A new slab is placed on the conveyors, and cycle is started again. Machine specifications: Slab max width: 180 cm Slab min width: 25 cm Max distance between 2 holes: 190 cm Min distance between 2 holes without milling machine: 18 cm Min distance between 2 holes with milling machine: 23 cm Handling Spindle handilng along the whole length of the machine and of the two carts is operated along precision guides by means of recirculating ball slide guides. Motion is operated by precision rolled screws with recirculating ball bushes and precision gearboxes. The four spindles and the two carts are operated by brushless motors coupled with precision gearboxes and driven by electronic drivers which are in turn CNC-operated. Precision in positioning Precision in positioning is lower than +/- 0.2 mm. Output Depending on the material used (marble, tender or hard granite) the typical hole with 6-8 mm diameter and 25-30 mm depth is completed in 20-30 seconds. The distance between two slabs is about 20 cm which entails a motion time of about 20 seconds. Therefore, 4 holes are completed in 40-50 seconds, with an output of 290-360 holes per hour. The average repositioning time is about 5 seconds. Lubrication Lubrication of moving parts is centralized and automated. An automated lubrication cycle for periods when the machine is not used is also available. Positioning system It is automated thanks to an industrial computer. The operator must set slab width, hole position with reference to the mechanical stops, make requests for holes with or without pocket, and the automatic system will provide the necessary motions for the drilling heads and the carts. Once the machine is positioned, the automated work cycle is started. The height of the drilling spindles is adjusted by using a motor-reducer operated by two buttons on the spindle columns. 4 holes on each side of the slab can be made, along with two pockets on one side, as well as slots, prolonged slots, and kerfs. The computer features also the following utilities: Generation of drilling programs, storing of the programs by code (brand), list of and changes to the programs (on the machine) sorted by order Generation of drilling programs, storing of the programs by code (brand), list of and changes to the programs on PC so that they can be later stored in the machine by using a floppy disc, and sorted by order Displaying of drilling programs Displaying of machine status (diagnostics) Automatic synchronising Storing and displaying of drilled slabs and of the holes made as of a given date (password required) Lubrication cycles for periods when the machine is not used.
