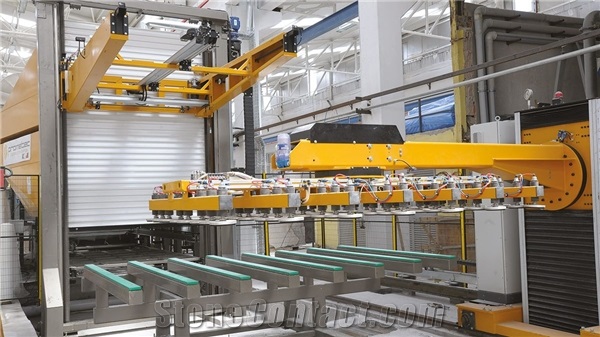

SMART LINES 30/40/45/60 Customized Resin Line with Combined Static Storehouse

Type
Automatic Filling-Resining Machine
Usage
Granite, Marble, Basalt, Quartzite, Limestone, Sandstone, Travertine, Onyx

After-Sale

Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation, Third-party team installation
Maintenance
Field troubleshooting, Remote troubleshooting
Supplier
Prometec s.r.l.
Location
Italy Italy

Prometec

Main Product: resin lines, loading and downloading system, further automatic stone hardening systems with different level of automation

Contact Supplier

You may also like

Machinery Function Features

SMART LINES 30/40/45/60 PRODUCTION CAPACITY: FROM 10 TO 20 SLABS/H “CUSTOMIZED“ RESIN LINES STOREHOUSES TYPES RESIN LINES WITH STATIC COMBINED STOREHOUSES Smart Lines are characterized by the fact that the drying and catalysis stores are assembled in the same machine. The capacity of the store can change according with the production capacity needed. Starting from a store capacity of 30 slabs, with the line Smart 30, for a maximun production of 10 slabs hour, it’s possibile to join a store capacity of 60 slabs, with the line Smart 60, for a maximun production of 20 slabs/hours. The Smart Line can be equipped with automatic machine for loading and unloading. MAIN FEATURES Complete drying and correct oven curing process Thanks to the perfect air propagation system, together with the subdivision of the oven in two separate rooms Low consumption with constant working quality Thanks to the optimal heat insulation realized with first quality materials Working capacity: from 10 slabs/hour to 20 slabs/hour Thanks to the versions: SMART 30, SMART 40, SMART 45, SMART 60 Material directly loaded onto tray and the possibility of “book match” process Reduced occupied space

BASIC TECHNICAL PARAMETERS

Technical Data
ParameterUnitSmart 40 line with match 54 CS loader/unloader
Medium hourly consumptionkw·h43 920,64 mc/h 18.09 kg/h)
Total electric power installedkw67
Open booksi200
Max. slab WeightKg1200
Max. Slab thicknessmm40
Max. Slab processing widthmm3300x2200x40
Time of permanence in hardening storeminute100
Time of permanence in drying storeminute60
Hardening store capacitynr/hour25
Drying store capacitynr/hour15
Max Production (one face treatment)nr/hour15 slabs/h
Total power installed *kWh/h21,5 kWh/h 4,3 m3/h3.5 kg/h

Recommended Products

Send your message to this supplier

* To:
Carlo Belle

Enter between 20 to 4,000 characters.

This is not what you are looking for?◎ Post a Sourcing Request Now

Company Profile

Company Name:
Prometec s.r.l.
Business Type:
Stone Machinery
Country/Region:
Italy
Verification Type:
Free

Company Overview

Company Description

LEADING INNOVATION IN STONE We have been skilled operator about handling and improvement of stone material since 1981. Prometec continues and improves the same goals still started under Protec, leader company in stone processing machinery. Prometec pleases every Customer’s wishes because of its great innovation and creativity, therefore Prometec is one of the best worldwide society about designing, manufacturing and handling in stone eld, particularly: resin lines, loading and downloading system, further automatic stone hardening systems with different level of automation. Continue technological innovation together with exibility to solve our Customer’s problems represent our way of work to win, therefore Prometec is one of the top companies for the automation of production of stone plants lines. “CUSTOM-MADE” MACHINES PROMETEC s.r.l. designs and manufactures every machine, adapting, if necessary, it to the Customer’s demands. All mechanical, electronics and software development is made inside the Company thanks to our decennial know how to get both a complete technological control of the productive processing and a total exibility for guaranteeing a continuous innovation of products. Because of innovative and original solutions, designed to satisfy customer needs, and high quality equipments, Prometec offers both economically and technically competitive products all over the world. CUSTOMER CARE Famous for the high technical skilled personnel unit with a great supply, this service offers a qualified and efficiently post – selling assistance, also because we use the most innovative technologies. Experience, flexibility, innovation, technology and availability to a global market always harder to please. Sede Commerciale e Amministrativa Via Dorsale, 13 Parco Produttivo Apuano 54100 Massa (MS) Italy Tel: +39 0585 79681 Fax: +390585 796868 info@prometec.it

Tradeshow

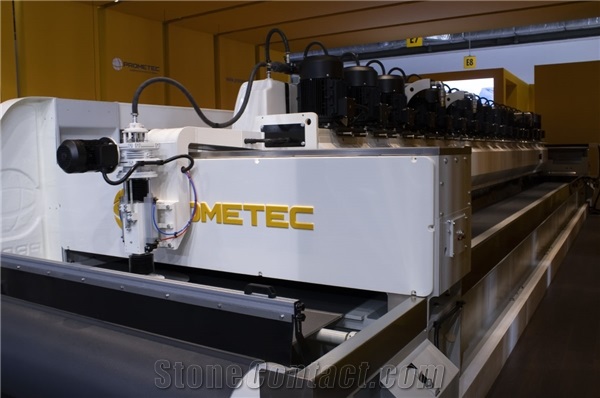

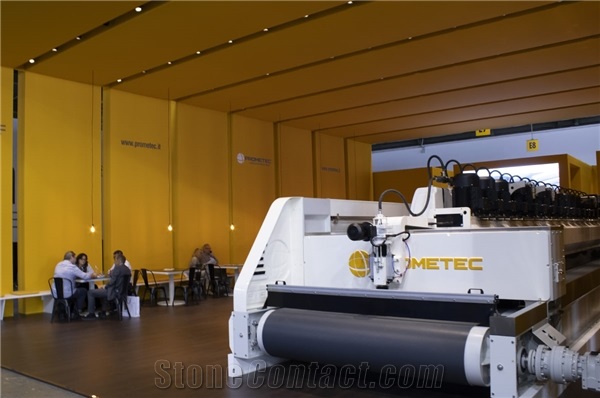

MARMOMAC 2019

Trade showTrade showTrade showTrade showTrade show

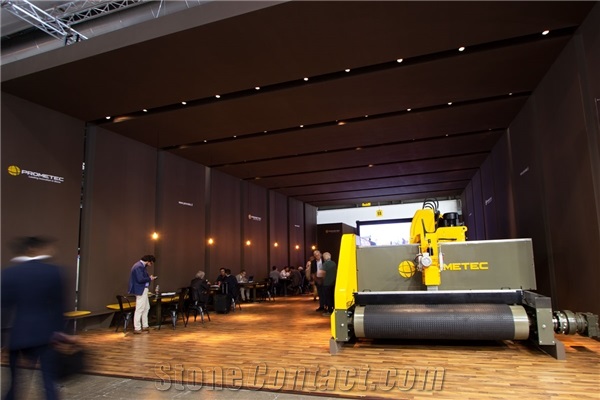

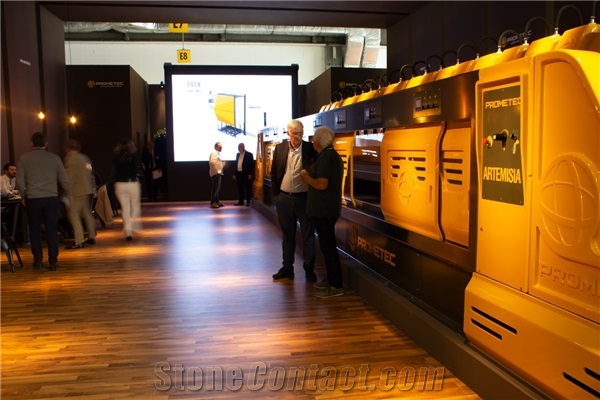

MARMOMAC 2018
