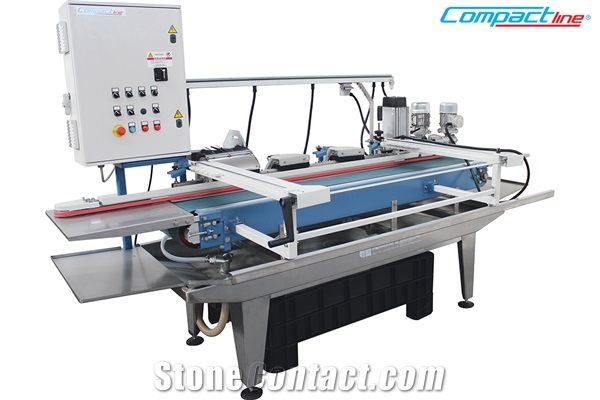

MSG/4 - MACHINE FOR STEPS CHAMFERING

Type
Edge Profiling, Polishing Machine
Usage
Granite, Marble, Limestone, Quartzite, Sandstone, Travertine, Artificial Stone, Basalt

After-Sale

Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation
Maintenance
Remote troubleshooting

Supplier

CompactLine

Main Product: ceramic plants and equipments, cutting machines, mosaic machines, polishing machine

Contact Supplier

You may also like

Machinery Function Features

Automatic machine with 2, 3, 4, 5 or 6 motor-spindles to bevel at 45° the slabs in gres porcelain, marble and stone which are necessary for the composition of steps.

BASIC TECHNICAL PARAMETERS

Technical Data
ParameterUnitMSG/4
Approx. WeightKg400
Machine overall heightmm1800
Machine overall widthmm2980
Machine overall lengthmm1550
Water consumptionL/h200
Hydraulic pump powerkw1x0,37
Calibrating spindle rotation speedr/min2800
Polishing spindle rotation speedr/min2800
Grinding tool diametermm140
Belt advancement powerkw0,25
Grinding spindle powerkw2.2
Min. workable length of the single piecemm35
Max. processing thicknessmm30
Conveyor Belt widthmm350
Min. processing widthmm35
VoltageV/hz400 V 50Hz
