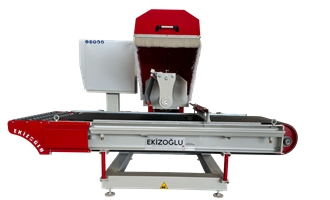

EM05 - Multi-Disc Cutting Machine

Type
Multi-Blade Cross-Cutter,Trimming
Usage
Granite, Onyx, Sandstone, Marble, Limestone, Travertine, Quartzite, Slate, Basalt, Artificial Stone

After-Sale

Lead Time
Optional
Warranty
12 months
Install and Guarantee
Customer pay for installation, Remote guidance installation
Maintenance
Regular guidance & maintenance

Supplier

Ekizoglu

Established: Nov 29,1986

Main Product: Makina, Ekizoglu, marble machines, granite machines, basalt machines, ceramic machines, Crushing Machines, Ekizoglu Makina

Contact Supplier

You may also like

Machinery Function Features

EM05 - Multi-Disc Cutting Machine • Belt Width *Optional: 700 mm • Working Width: 650 mm • Working Thickness: 10 – 60 mm • Number Of Head: 1 • Disc Diameter: 300 – 350 mm • Cutting Motor Power: 22 kW • Up – Down Control Motor Power: 0,55 kW • Belt Motor Power: 0,75 kW • Belt Speed: 3 mt / min • Machine Dimensions ( W / L / H ): 2200 / 3000 / 1980 mm https://ekizoglumakina.com/en/product/multi-disc-cutting-machine

BASIC TECHNICAL PARAMETERS

Technical Data
ParameterUnitEM05
Water requirement for each spindleL/min120
Outfeed conveyor belt motor powerkw0.75
Machine width (W)mm2000
Approximate weightKg1700
Unloading robot driving motor powerkw0.37
Cutting motor powerkw11/ 18/ 22
Machine height (H)mm1980
Main conveyor belt speedm/min4
Machine length (L)mm3000
Number of disc-holder headsnr1
Belt widthmm700
Discs diametermm300 - 350
Max.Strip Machinable widthmm600

Processed Stone Photos

Mosaics

Mosaics

Panels

Panels

Components

Cutting Discs

Cutting Discs

Cutting Molds

Cutting Molds

String Molds

String Molds

Spacers

Spacers

Consumables

Cutting Discs

Cutting Discs

Cutting Molds

Cutting Molds

String Molds

String Molds

Install Video

Operation Video

Recommended Machinery Products

Send your message to this supplier

* To:
Ekizoglu Machine

Enter between 20 to 4,000 characters.

This is not what you are looking for?◎ Post a Sourcing Request Now

Company Profile

Company Name:
Ekizoglu Makina
Business Type:
Stone Machinery
Country/Region:
Turkey
Established:
Nov 29,1986
Verification Type:
Free Verified Supplier

Company Overview

Company Description

WELCOME TO THE WORLD OF EKIZOGLU MACHINE!

Everything started in 1986 when Kudret EKIZ, the founder of Ekizoglu Machine, produced textile machines in a workshop in Denizli and combined technology and engineering. Kudret EKIZ, who passed his knowledge and skills gained from the textile sector to natural stone crushing machines in 2007, then gained a great acceleration in the sector by incorporating the production of natural stone cutting machines. Innovative products and professional services are the basis of the success of Ekizoglu Machine and since then it has become a leading brand in natural stone crushing, cutting, and forming machines in both Turkey and the international Industry.

Even when we started in 1986, we continue to contribute to the production of better surfaces for life in all areas, and to helping to design better places to live.

Ekizoglu Machine, which has expanded and turned into a family company with the participation of Zeynep EKIZ ATICI and Beyza EKIZ from the second generation in the executive staff, open-mindedness and transparency are values that reflect the principles of Ekizoglu Machine and encourage real partnerships in the business world.

We take place in local and international projects with our large production space and specialized, experienced team members who work in our corporate identity which shows our culture and values, inner and outer communication, in our factory that established on 2000 m² indoor, total 5000 m² area, in Denizli Honaz region.

CUSTOM PROJECTS

The people we serve are the center of everything we do. That’s why we believe that we should focus on every step of the process and do them in the best way possible to produce practical, solution-oriented, customized machines for our customers. we believe that we have to focus on every step of the process and do our best to find practical solutions and produce customized machines for our customers. Our team has unique design experience and training. They can offer the right project and give the expert advice you need to determine the installation and delivery dates.

CULTURE, DIVERSITY AND INCLUSION

We care about the unique ideas and experiences of our team members and customers. We are determined to encourage an inclusive culture that able all the people to participate in our success who touch our business. We believe that a respectful and supportive environment is more supportive of shared participation, regardless of race, gender, ethnicity, age and religion.
