Quarry diamond wire saw machines are practical wire cutting machines designed to be used in marble, limestone, sandstone, granite quarries. Of course, in order for this machine to be used, the location of the quarry is as important as the hardness of the stone to be removed from the quarry.
The fact that the machine is not too heavy provides ease of relocation.
These machines are sometimes used to cut the stone from the quarry as blocks, and sometimes to cut the edges of the removed stone blocks into a standard shape.
In addition, these machines can be used for cutting large concrete masses in various construction projects or demolition works.
The advanced design and manufacturing technology applied, the diamond wire saw machines are suitable for opening granite, marble and sandstone quarries. The quarry wire saw machine head can be adjusted and rotated automatically. Vector frequency converters are equipped to ensure stable torque output. The feeding speed can be adjusted automatically by the constant tension control system. The setting is fixed, so the cutting condition always remains optimum. The operation panel can be wire-controlled and remote-controlled, the monitor can display instantaneous current, feed rate and cutting data.
9kw,11kw,15kw diamond wire saw machine can be used for block dressing in quarry or in stone factory.Low cost ,easy operation,portable and easy mainttainance in stone mine! Controlled by inverter.it can adjust feeding speed according to cutting situation.And guarantee the perfect cutting condition!.
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite
Machinery Function Features:
The machine adopts double frequency converter for stepless speed regulation, which can realize constant tension of string string string and automatic control in the cutting process. The automatic control system can adjust the walking speed of the machine scientifically according to the change of load, so that the string string string is always in the best working state.
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Usage: Marble, Quartzite, Sandstone, Travertine
Machinery Function Features:
ENGINE POWER 55 KW 75 HP MACHINE CONTROL WIRED REMOTE CONTROL CUT CAPACITY 12-25 M2 (CHANGE BY WIRE AND STONE) TEL WRAPPING CAPACITY 80-150 M MAIN PULLS DIAMETER 800MM AUXILIARY PILLOW 300MM MACHINE LENGTH 6M SUPPORTS HYDRAULIC SYSTEM ADJUSTABLE
Diamond Wire machines VIP 910 ELECTRONIC DIAMOND WIRE SAW Machine properly studied and manufactured to cut big blocks, boulders and benches, when diamond wire speed adjustment is required. An inverter device is used to control and constantly adjust the diamond wire speed from 0 to 40 m/sec., according to the type of stone. The combination with the automatic feeding system by means of “supercard” or inverter, allows a very accurate management of the cutting tool and a very smooth and precise move
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
Main engine power 55 kW 1000 rpm Travel motor 0.75 kW 1400 rpm Slewing motor 0.75 kW 1400rpm Hydraulic motor 2.2 kW 1400 rpm Machine control Wired remote control Electrical equipment 380 v 3 phase star delta Pulley diameter 800 mm Installation Operated hydraulic feet Cutting capacity 14-22 m2 per hour (depending on the hardness of the marble) Wire capacity 70-130 meters Width / height / height. 1250x6520x2190 mm Weight 3300 kg Auxiliary pulleys (500mm)-(300mm) Cutting method 3-way cutting method
Electrical Motor: 18,5kw 1500 rpm FlywheelDiameter: 500 mm Ramp Length : 3 meters Electrical Components: Siemens Control: Remote control with cable 8 meters CuttingSpeed: 4-15 m2/hr Weigth: 400 kg Width: 1200mm Heigth: 400mm Length: 3100mm Notes: Big Wheel installed for comfort transportation. Electrical distribution and control panel fixed on machine. Ratchet-pawl mechanism protect to slide down of motor / fly Wheel groups in case of diamond wire break.
Functions and Features: Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time. The machine is without phase request. It doesnot need to change or distinguish the power phase. The machien has the following protection functions: wire broken protection, over-loading protection,
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Motor Cinsi / Engine Type Elektrikli / Electricity Motor Gücü / Motor Power 30 kw 40 hp, 380 v 1500 dev/dk (Rpm) Yürüyüş Sistemi / Movement System Redüktörlü Otamatik Hız Kontrolü Automatic Speed Control with Reducer Kullanılacak Tel / Wire Type Elmas / Diamond Kesme Hızı Saat / Cutting speed (Hour) 8-9 m Yüzey / Surface / Per Hour Tel Çevirme Kapasitesi / Wire Rotating Capacity 45-50 m Kasnak Çapı / Pulley Diameter 60 cm Ağırlık / Weight 830 kg Şase
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 18 Months
Usage: Marble, Limestone, Sandstone
Machinery Function Features:
The machine adopts double frequency converter for stepless speed regulation, which can realize constant tension of string string string and automatic control in the cutting process. The automatic control system can adjust the walking speed of the machine scientifically according to the change of load, so that the string string string is always in the best working state.
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 12 Months
Usage: Basalt
Machinery Function Features:

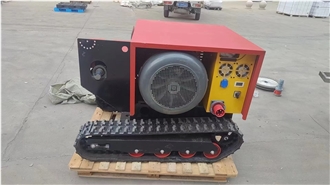

37kw crawler wire saw machine 3 phase 380v/50hz Features: thicker running shaft 220 high voltage protection Hoisting steel plate thickness 8mm, load-bearing wheels 4+4 Both large and small motors have variable frequency and speed regulation, and are compatible with 37 and 22kw motors. All error codes of the inverter can be synchronized to the remote control display working current and intelligent cruise feeding cutting Walking can be switched: it can also use mains electricity or battery. When l
HQSJ-37A Wire Saw Machine is available for cutting in any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt, etc. also good for bridge, reinforced concrete and other construction cutting.

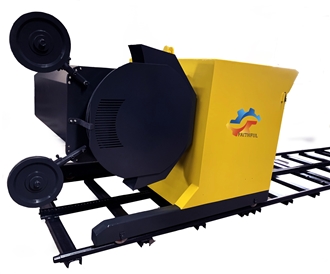

HQSJ-55A Wire Saw Machine is available for cutting in any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt, etc. also good for bridge, reinforced concrete and other construction cutting.
Model KM / KG Power of main electric motor 50 / 60 Hp Diamond wire saw speed ( with inverter ) from 0 up to 41mt/sec Rotation cutting head 360° Hydraulic lateral translation 1600mm Weight of the machine 1560 / 1600 kg The wirecutters KORFMANN are equipped with hydraulic positioning system and electronic control of advance. The version G for granite have diamond wire speed control by electronic inverter.
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Motor Cinsi / Engine Type Elektrikli / Electricity Motor Gücü / Motor Power 18,5 kw, 25 hp, 380 V, 1500 dev/dk (Rpm) Yürüyüş Sistemi / Movement System Redüktörlü Otamatik Hız Kontrolü Automatic Speed Control with Reducer Kullanılacak Tel / Wire Type Elmas / Diamond Kesme Hızı Saat / Cutting Speed (Hour) 8-9 m Yüzey / Surface / Per Hour Tel Çevirme Kapasitesi / Wire Rotating Capacity 30 - 35 m Su İhtiyacı Saat / Water Consumption (Hour) 200 lt / Hour K
Quarry Diamond Wire Rope Saw Machine for Rock Cutting Products Feature: This BL Series Diamond wire saw can apply horizontal, vertical and acclivity and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone operation can improve the working condition and increase the safety factor. Advantage: 1.The wire tension and cutting current is closed loop automatic contr
Double frequency converters ensure automaticlly adjustment of moving speed, in order to keep the wire be in the best working condition. No need to distinguish or change the power phase, the machine has over-load protection, lacking phas protection and terminal limit protection. The lateral moving and the rotation of head are controlled by electric motor, Photoelectric proximity switch installed on the head for limitation protection. Control platform display the key parameters such as the main mo
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 12 Months
Usage: Granite, Marble, Limestone, Sandstone
Machinery Function Features:
This machine adopts double inverter stepless speed regulation, while cutting,it can achieve constant tension wire cutting process and automatic control, automatic control system can be realized according to the speed of walking machine change science to adjust the load, which is always in the best working state of diamond wire.
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 9 Months
Usage: Granite, Marble, Onyx, Basalt, Travertine
Machinery Function Features:
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Motor Cinsi / Engine Type Elektrikli / Electricity Motor Gücü, Voltajı, Devri / Engine Power, Voltage, Revolution 20 / 25 hp, 15 / 18 kw 380 V 1500 dev/dk (Rpm) Yürüyüş Sistemi / Movement System Makaralı (El ile) / with Roller (with Hand) Makinanın Hareket Şekli / Machine Movement Type Yıldız Üçgen Yol Verme / Star Triangle Connection Kullanılacak Tel / Wire Type Elmas / Diamond Kesme Hızı Saat / Cutting Speed (Hour) 3-5 m Yüzey / Surface / Hr. Tel Çe
Stock : In Stock Engine Power 15 Kw or 18.5 kW 1450 RPM 380 volts Walking System Roles Machine Control Wired Remote Control Cutting Capacity 4-6 m2 per hour (according to Marble Hardness) Pulley Diameter 500mm Wire Capacity 15-30 Mt Width/Length/Height 130 x 300 x 160 cm Weight 325 Kg
The machine cuts on the top rail on its own. Since the machine is fixed in 5 different regions while cutting, there is no gap and continuous cutting when cutting, this means more cutting than rail machines. Machine control wired remote controller Feet hydraulic system adjustable
Type: Stone Quarry Machines › Quarry Wire Saw Machine
Warranty: 12 Months
Usage: Marble, Limestone, Sandstone, Travertine
Machinery Function Features:
75 Kw Electric Motor Wire breakage by 20-30% reduces. Cutting speed compared to other machines raises. Pulley movement right – left – bottom cut. Pulley in its field 30 cm without moving the machine has the freedom to move. Racking gear system machine because it is located in the bridge sludge accumulation does not occur. Speed controlled The machine is also used in the upper sections on the mirror. Wire turning 80-180 meters Main pulley 80 cm Rail length 6 mt When the wire
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Motor Gücü / Engine Power 55 Kw (75 hps) 1000 dev/dk (Rpm) 380 volt Yürüyüş Sistemi / Movement System 1.1 KW 2 hp Turbo Beyin Kontrollü / Turbo Intellegence Controls Makine Kontrolü / Machine Control Kablolu Uzaktan Kumanda / Remote Controller with cable Elektrik Motor Kalkış Sistemi Engine Starting System Hız Kontrollü / Speed Controller Kesme Kapasitesi / Cutting Capacity 18-28 m2/ Saat Mermer Sertliği ve Elmas Tele Göre Değişir 18-28 m2 / Hour Chan
Dazzini Macchine Series 1000-Diamond wire cutting machine Wirecutter of last generation, it can be considered as a landmark in its field. It can be used on all the types of marble, granite and stone, with top performance and life of the diamond wire, at maximum cutting speed. The whole controls are fully automatic and don't require the constant presence of the operator.Technical features: Diamond wire running system by electric motor The electronic system of feed control is extremely accurate an
VIP 914 Diamond Wire Quarry Machines The diamond wire saw mod. vip/914 is a compact design, which can cut in any direction, vertical, horizontal, or inclined, straight against the wall/floor of the benches, in quarries of marble or granite. This machine allows to make two adjacent cuts at 160 cm distance from each other in a single positioning on rails. The rotation and the lateral adjustment of the drive unit are motorized. VIP 914 Inverter the model with vectorial inverter control system allow
Main Motor: 55kW Feed Motion Motor: 1,1kW with inverter Flywheel Diameter: 800mm Rails: 3 meters 2 ea. ( Total length: 6 meters) Guide Flywheel: 300mm Working Positions: Vertical and Horizantal Cutting Speed: 10-25 m2/h (depend on hardness of stone) Electrical Components: Siemens Notes: Electrical distribution board and control board installed on machine. Unibody machine helps easy transportation. Main power (input) cable plug-in and run. Automatic feed motion gives two different speed.
Let's think about the construction machinery work machinery first diesel engine by running the engine and the whole load is transferred to the hydraulic system hydraulic engine in our hydraulic machinery, leaving the whole engine to the hydraulic system It offers more strong ropes than the machines in its own group. Since it is hydraulic system, it offers cutting possibility at desired speed. Between 0-1200 cycles. Marble-Granite-Basalt-Travertine Due to the hydraulic system, electrical engine c
The Diamond wire saw can suit to all kinds of quarry, even the hardness or the crack of stone, the wire saw can be used in, marble, limestone, sandstone, baslt, and granite quarry. the wire saw can apply horizontal, vertical and acclivitous and other direction cutting in the quarry. Diamond wire saw can exploit large specification and regular blocks, the cutting fact is smooth and less hurt to the block, the thin crack of the stone which can save the resource of stone. During using the diamond w
Description: Electrical Motor: 22,5kw 1500 rpm FlywheelDiameter: 600 mm RailLength: 3700 mm Rotation of Flywheel : 360° CuttingSpeed: 8-20 m2 /hr Electrical Components: Siemens Weigth: 750 kg Width : 1350 mm Length : 3850 mm Heigth: 1740 mm Notes:Electrical distribution and control panel fixed on machine. Main external power input cable plug-in panel and run.
TD 25 Diamond wire saw for block dressing and small cuts in the quarry. This is the smallest and most manageable machine. The 18 kW GB 6-pole main motor drives a 60 cm flywheel and can be rotated mechanically over 360° for cuts at any angle. OPTIONAL: inverter on a mobile control panel for variable wire speed (0-30 m/s)
TEKNİK ÖZELLİKLER / TECHNICAL SPECIFICATIONS Motor Gücü / Engine Power 55 Kw (75 hps) 1000 dev/dk (Rpm) 380 volt Yürüyüş Sistemi / Movement System 1.1 KW 2 hp Turbo Beyin Kontrollü / Turbo Intellegence Controls Makine Kontrolü / Machine Control Kablolu Uzaktan Kumanda / Remote Controller with cable Elektrik Motor Kalkış Sistemi Engine Starting System Hız Kontrollü / Speed Controller Kesme Kapasitesi / Cutting Capacity 18-28 m2/ Saat Mermer Sertliği ve Elmas Tele Göre Değişir 18-28 m2 / Hour Chan
Functions and Features: Being controlled by two sets of inverters and applying constant tension control principle, the moving speed of the machine can be adjusted automatically according to the changes of the cutting force to make sure the diamond wire saw be in the best cutting condition all the time. The machine is without phase request. It doesnot need to change or distinguish the power phase. The machien has the following protection functions: wire broken protection, over-loading protection,
Continuous type wire saws are used to cut walls and other large constructions and stone quarries. Continuous type saws are used to cut silicon wafers for the semiconductor and photovoltaic industry. Diamond-impregnated wire saws are used in machine shops to cut metal parts.
Can a wire saw machine cut through metal?View answer⌄
Asked by Visitor
Concrete wire sawing is used to cut through steel and reinforced concrete. Concrete wire sawing gives the most precise cuts on ridges, beams and piers when it comes to making openings in thick walls or removing large concrete structures.
A wire saw is an effective tool when it comes to cutting, but they use abrasion instead of saw teeth for cutting. When compared with other cutting methods, wire sawing offers significant advantages over other cutting methods in various applications
